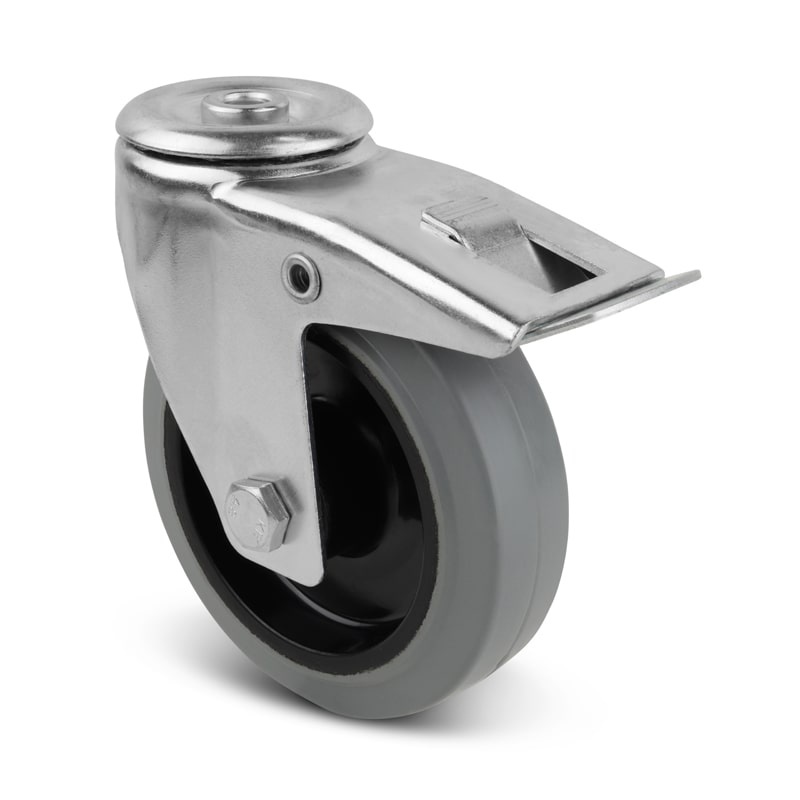

Rubber swivel castor with brake 125 mm - roller bearing - 220 kg
Show all:
Casters,Rubber wheels
Description
Swivel castor 125 mm with brake, grey elastic rubber tyre
Swivel castors with brakes and bolt hole attachment.
Sheet steel pressed fork, 2.5 mm, (galvanised) with a double ball race.
The brake simultaneously blocks the turntable and the wheel.
Wheels with grey elastic rubber tyres (approx. 65 Shore A), vulcanised onto black polyamide rims with roller bearings.
Non-marking, the grey tyre leaves no stripes and has a very low rolling resistance.
Read more
Specifications
- Article number: 413.521
- Bandage: Gray elastic rubber, vulcanized
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat surface
- Soundproof: 5
- Wear-resistant: 3
- Rolling resistance: 3
- Tyre hardness: approx. 75 shore D
- Wheel diameter: 125 mm
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 40 mm
- Building height: 155 mm
- Carrying capacity: 220 kg
- Wheel width: 36 mm
Show all
Specifications
- Article number: 413.521
- Bandage: Gray elastic rubber, vulcanized
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat surface
- Soundproof: 5
- Wear-resistant: 3
- Rolling resistance: 3
- Tyre hardness: approx. 75 shore D
- Wheel diameter: 125 mm
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 40 mm
- Building height: 155 mm
- Carrying capacity: 220 kg
- Wheel width: 36 mm
