Rubber swivel castor with brake 200 mm - ball bearing - 450 kg
Show all:
Casters,Rubber wheels
Description

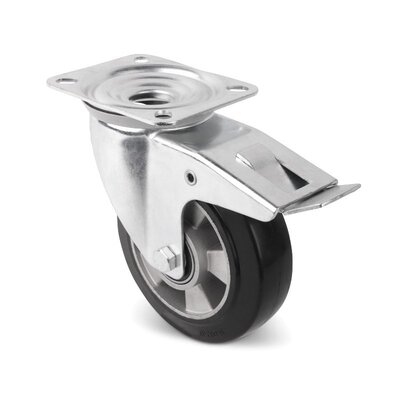

Rubber swivel castor with brake, 200 mm, with ball bearing and plate - 450 kg
Swivel castors with brake and plate attachment.
The brake simultaneously blocks the swivel and the wheel.
Sheet steel pressed fork (galvanised) with a sealed double ball swivel.
Wheels with black elastic rubber tyres (68 Shore), vulcanised onto aluminium rims with ball bearings.
Read more
Specifications
- Article number: 418.241
- Wheel bearing: Double ball bearing
- Suitable for: Flat Surface and Outdoor Terrain
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 68 shore A
- Bandage: Black elastic rubber, vulcanized
- Wheel diameter: 200 mm
- Rim: Aluminum
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake

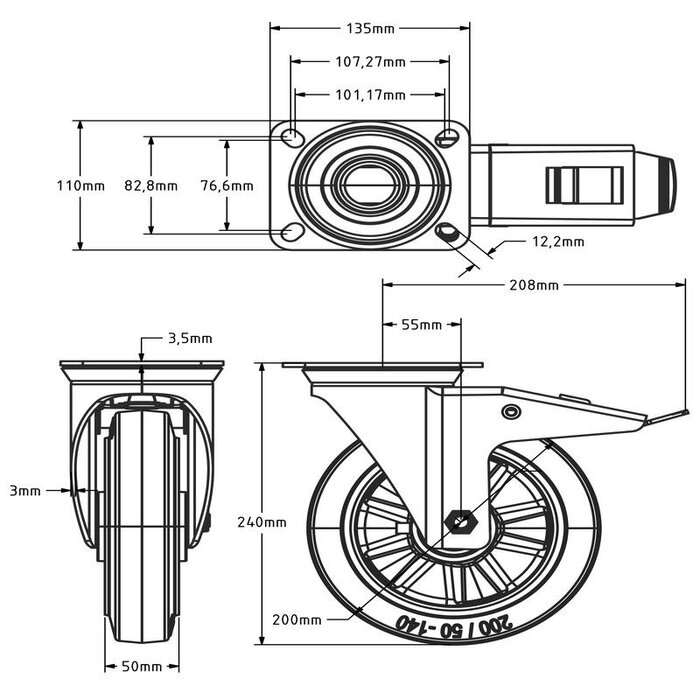

- Gaff rash: 55 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Plate size: 135 x 110 mm
- Building height: 240 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 450 kg
- Wheel width: 50 mm
