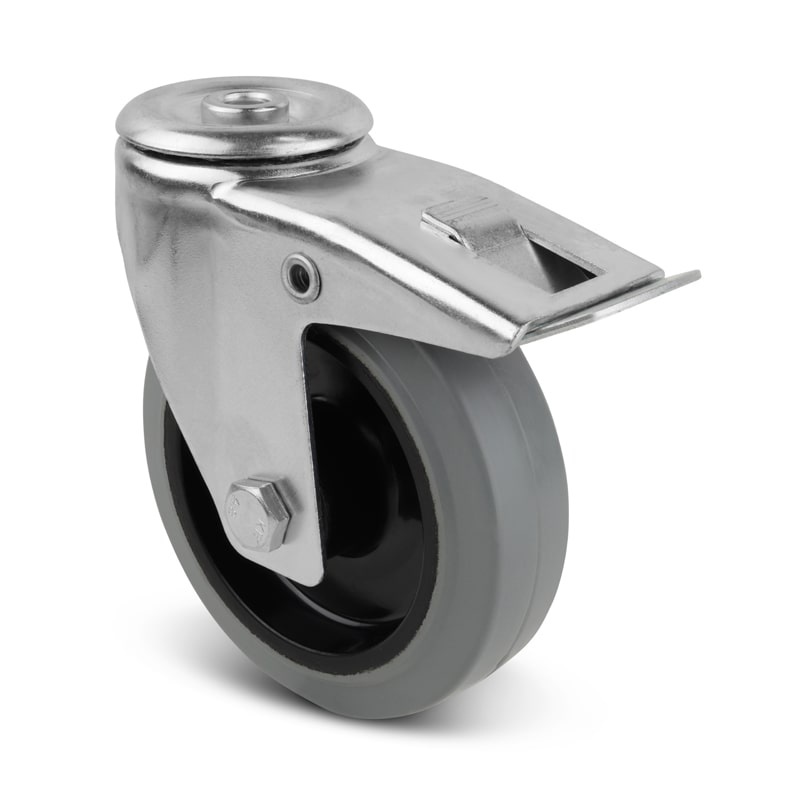

Rubber swivel castor with brake 80 mm - roller bearing - 110 kg
Show all:
Casters,Rubber wheels
Description
80 mm swivel castor with brake, grey elastic rubber tyre
Swivel castors with brakes and bolt hole attachment.
Pressed steel fork, 2.5 mm, (galvanised) with a double ball race.
The brake simultaneously blocks the turntable and the wheel.
Wheels with grey elastic rubber tyres (approx. 65 Shore A), vulcanised onto black polyamide rims with roller bearings.
Non-marking, the grey tyre leaves no stripes and has a very low rolling resistance.
Read more

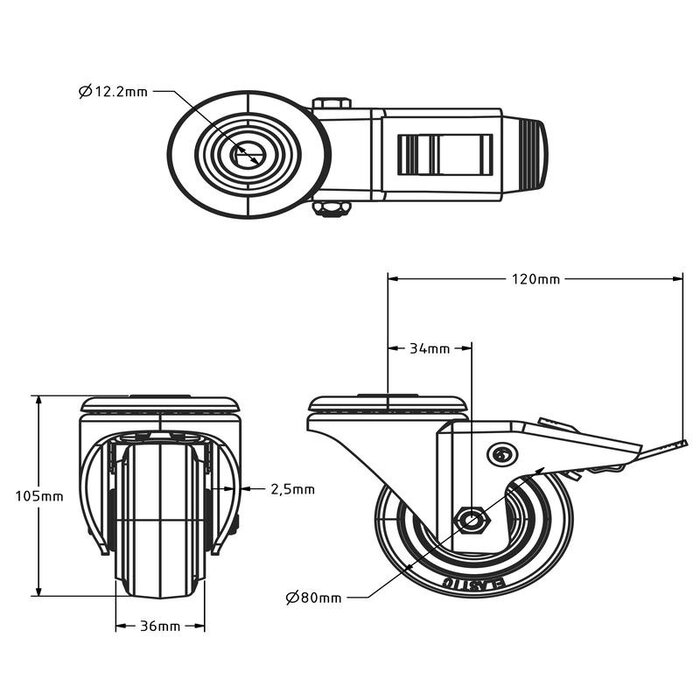

Specifications
- Article number: 413.511
- Bandage: Gray elastic rubber, vulcanized
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 65 shore A
- Wheel diameter: 80 mm
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm
- Building height: 105 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 110 kg
- Wheel width: 36 mm
Show all
Specifications
- Article number: 413.511
- Bandage: Gray elastic rubber, vulcanized
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 65 shore A
- Wheel diameter: 80 mm
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm
- Building height: 105 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 110 kg
- Wheel width: 36 mm
