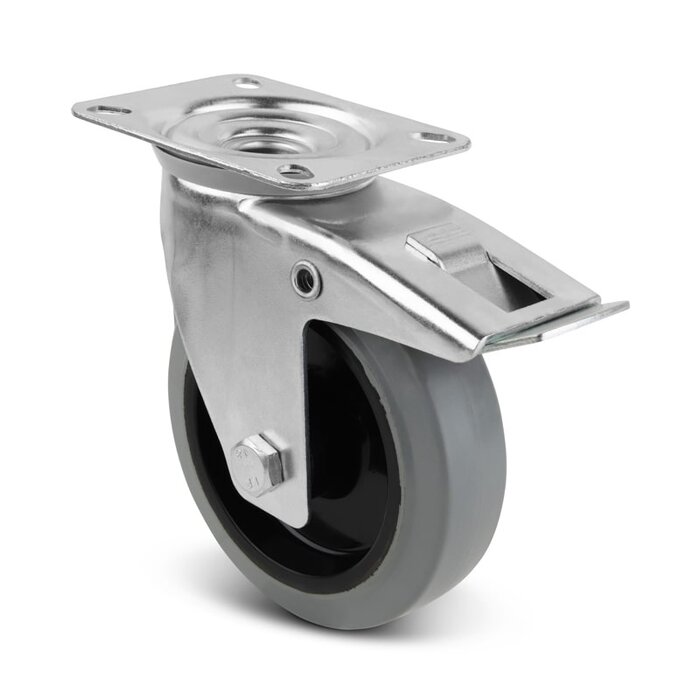

Rubber swivel castor with brake 80 mm - roller bearing - 110 kg
Show all:
Casters,Rubber wheels
Description
80 mm swivel castor with brake and grey elastic rubber tyre
Swivel castors with a plate attachment (2.5 mm thick).
Sheet steel pressed fork, 2.5 mm, (galvanised) with a sealed double ball swivel.
The brake simultaneously blocks the swivel and the wheel.
Wheels with grey elastic rubber tyres (approx. 65 Shore A), vulcanised onto black polyamide rims with roller bearings.
Non-marking, the grey tyre leaves no stripes and has a very low rolling resistance.
Read more
Specifications
- Article number: 413.111
- Wheel bearing: Roller bearing / Needle bearing
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 65 shore A
- Bandage: Gray elastic rubber, vulcanized
- Wheel diameter: 80 mm
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm

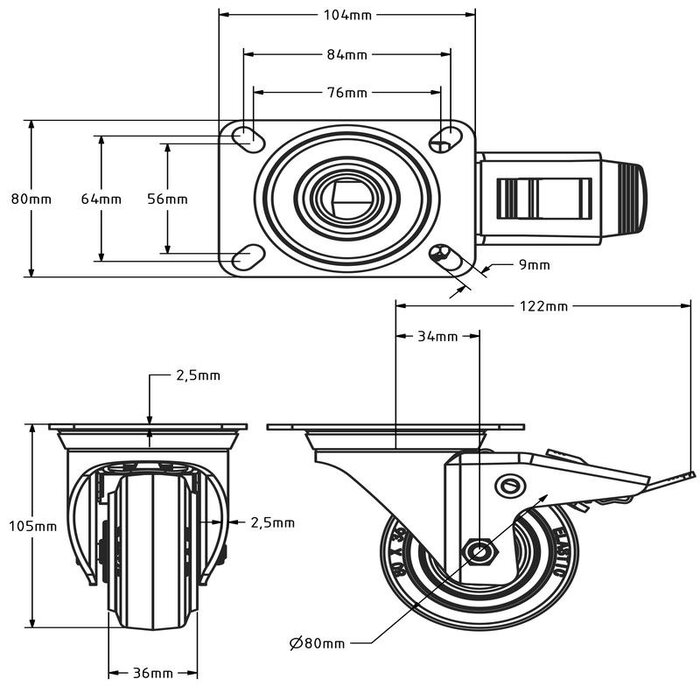

- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 104 x 80 mm
- Building height: 105 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 110 kg
- Wheel width: 36 mm
