Rubber wheel 125 mm - roller bearing axle hole 15 mm - 220 kg
Show all:
Casters,Rubber wheels
Description

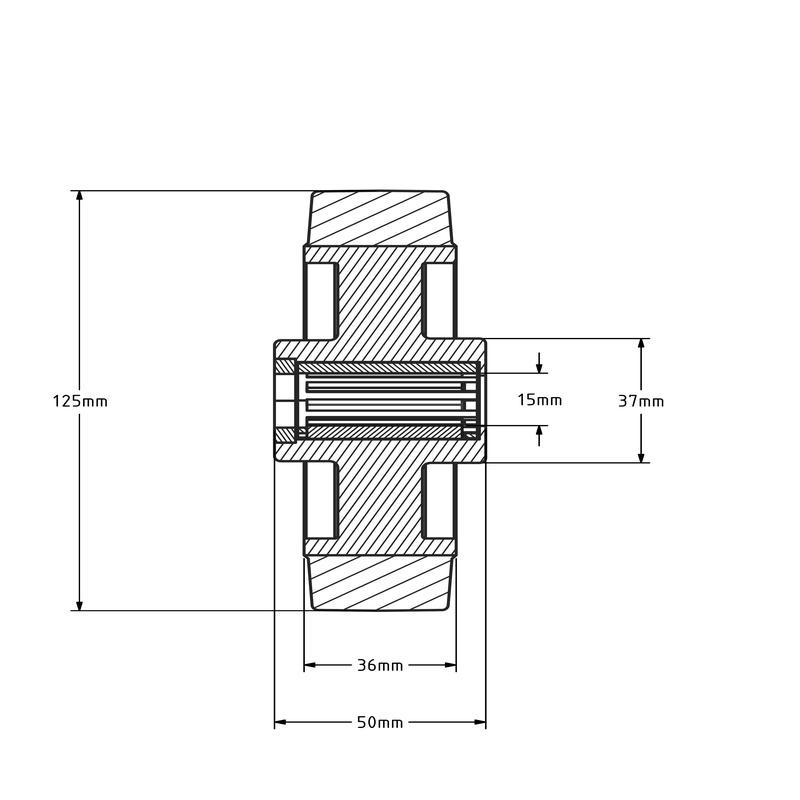

125 mm rubber wheel with roller bearing, 15 mm axle hole - 220 kg
Wheels with grey elastic rubber tyres (approx. 65 Shore), vulcanised onto a black polyamide rim with roller bearing.
These wheels combine a high load-bearing capacity with very low rolling resistance.
Read more
Specifications
- Article number: 166.120
- Wheel diameter: 125 mm
- Wheel width: 36 mm
- Hub length: 50 mm
- Type of wheel: Loose wheel
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing
- Bandage: Elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Rolling resistance: 4
- Shaft diameter: 15 mm
- Carrying capacity: 220 kg
Show all
Specifications
- Article number: 166.120
- Wheel diameter: 125 mm
- Wheel width: 36 mm
- Hub length: 50 mm
- Type of wheel: Loose wheel
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing
- Bandage: Elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Rolling resistance: 4
- Shaft diameter: 15 mm
- Carrying capacity: 220 kg
Show all
