Stainless steel heat-resistant fixed wheel 100 mm - 150 kg
Show all:
Casters,100 mm castors
Description
Stainless steel heat-resistant fixed castor 100 mm, -40 °C to +280 °C
Castor wheels and a plate attachment.
Sheet steel pressed fork, turntable lubricated with heat-resistant grease.
Hard wheels with a self-lubricating sliding bearing, temperature resistant from -40 to +280 degrees Celsius.
Read more

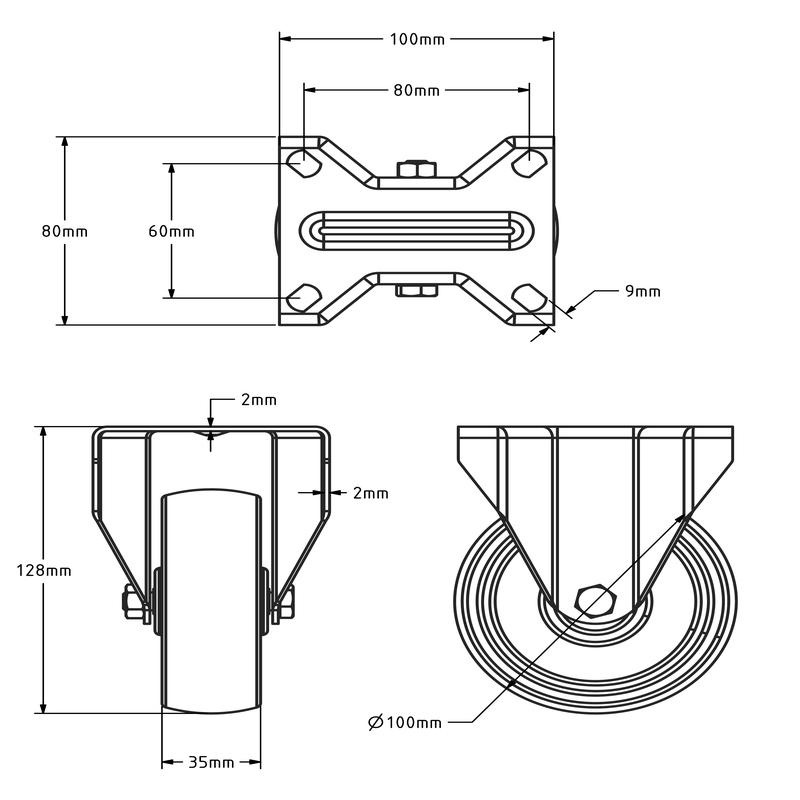

Specifications
- Article number: 681.022
- Wheel diameter: 100 mm
- Wheel width: 35 mm
- Type of wheel: Bucking wheel
- Plate size: 100 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Wheel bearing: Self-lubricating plain bearing
- Bandage: Heat resistant plastic
- Tyre hardness: 80 shore D
- Suitable for: Flat surface
- Temperature: - 40 / + 280 °C
- Carrying capacity: 150 kg
- Building height: 128 mm
- Assembly: Plate mount
- Fork: Stainless steel / Inox (304 AISI)
