Swivel castor with adjustable foot 50 mm - Nylon - plate - 170 kg
Show all:
Industrial wheels,Casters
Description

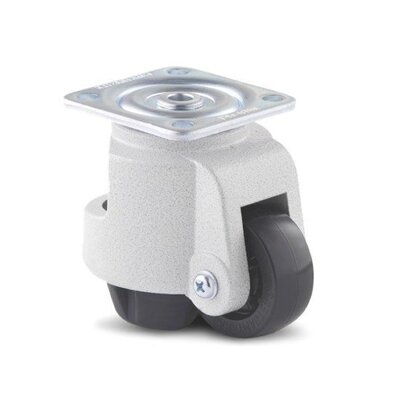

Swivel castor with 50 mm adjustable foot and plate - 170 kg
Swivel castors with adjustable foot and plate attachment.
Yoke/housing made of powder-coated aluminium.
Rubber locking foot.
Polyamide wheels with a plain bearing.
Read more
Specifications
- Article number: 920.010
- Wheel bearing: Slide bearing
- Low rolling resistance:

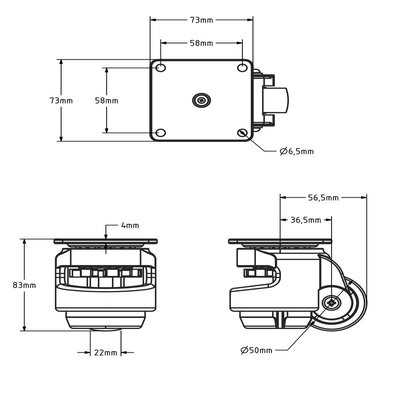

- Unit height max.: 95 mm
- Castor height: 83 mm
- Fork: Cast iron, powder coated
- Assembly: Plate mount
- Bolt hole spacing: 58 x 58 - Ø 6.5 mm
- Plate size: 73 x 73 mm
- Bandage: Polyamide (PA6)
- Wheel width: 22 mm
- Wheel diameter: 50 mm
- Suitable for: Flat surface
- Tyre hardness: approx. 75 shore D
- Gaff rash: 36.5 mm
- Temperature: - 40 / + 90 °C
- Type of wheel: Swivel castor with adjustable base
- Carrying capacity: 170 kg
Show all
