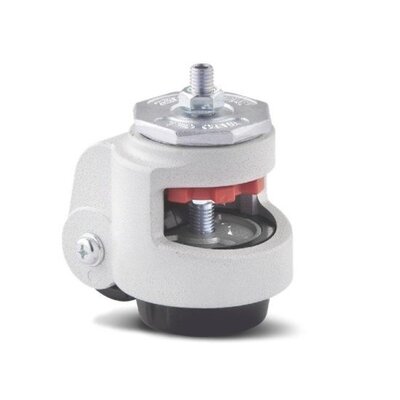

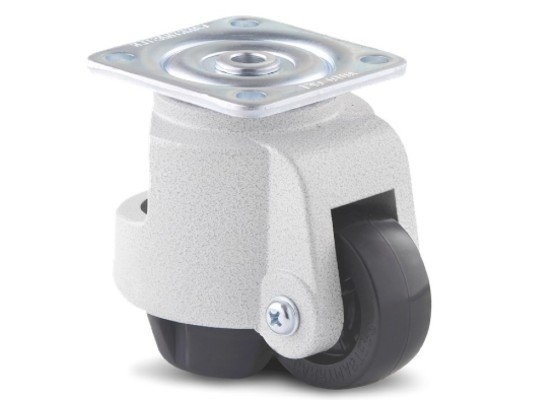

Swivel castor with adjustable foot 63 mm - Nylon - plate - 340 kg
Show all:
Industrial wheels,Casters
Description
Swivel castor with 63 mm adjustable foot and plate - 340 kg
Swivel castors with adjustable foot and plate attachment.
Yoke/housing made of powder-coated aluminium.
Rubber fixing foot.
Polyamide wheels with a plain bearing.
Read more

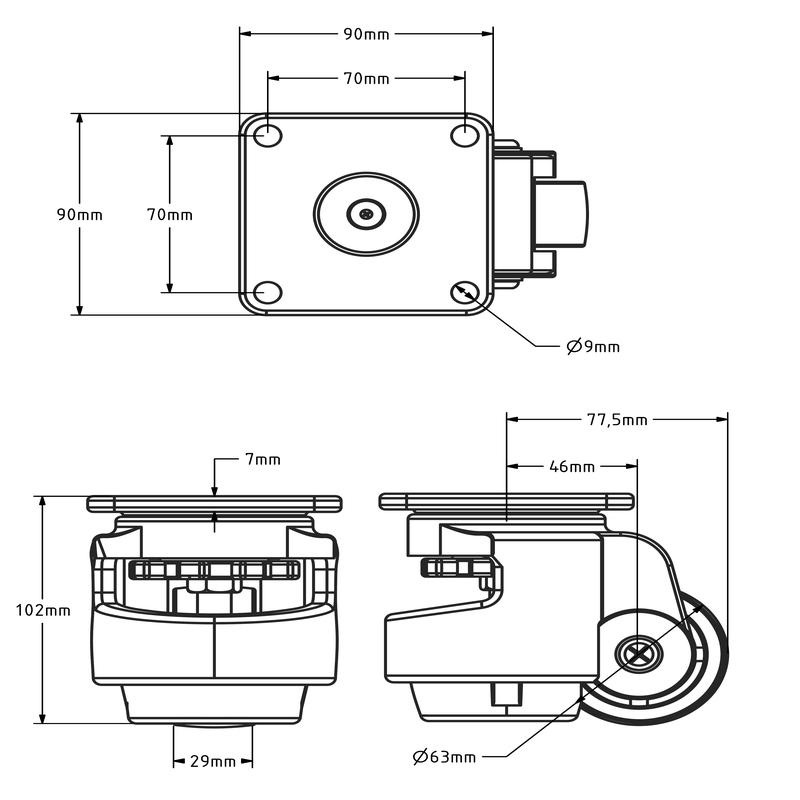

Specifications
- Article number: 920.015
- Wheel bearing: Slide bearing
- Low rolling resistance:
- Unit height max.: 117 mm
- Castor height: 102 mm
- Fork: Cast iron, powder coated
- Assembly: Plate mount
- Bolt hole spacing: 70 x 70 - Ø 9 mm
- Plate size: 90 x 90 mm
- Bandage: Polyamide (PA6)
- Wheel width: 29 mm
- Wheel diameter: 63 mm
- Suitable for: Flat surface
- Tyre hardness: approx. 75 shore D
- Gaff rash: 46 mm
- Temperature: - 40 / + 90 °C
- Type of wheel: Swivel castor with adjustable base
- Carrying capacity: 340 kg
Show all
