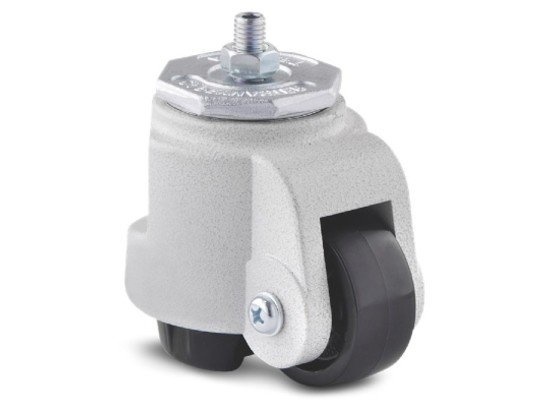

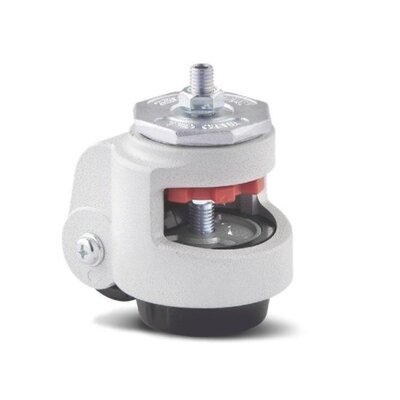

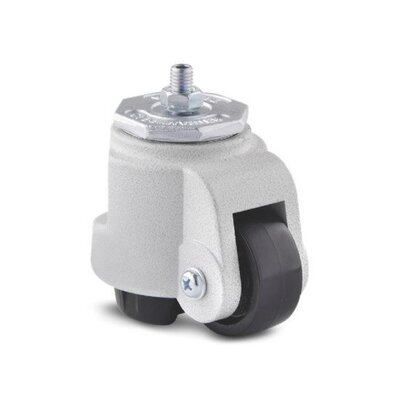

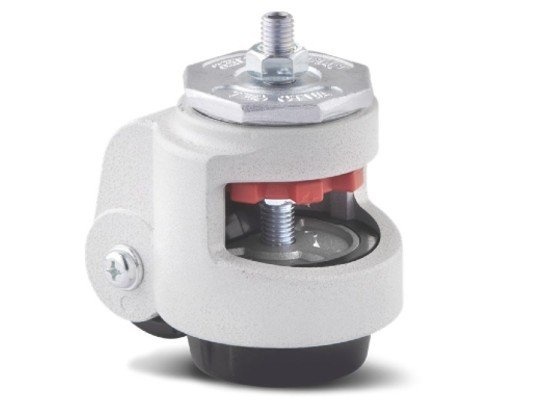

Swivel castor with adjustable foot 72 mm - Nylon - bolt hole - 540 kg
Show all:
Industrial wheels,Casters
Description
Swivel castor with 72 mm adjustable foot with bolt hole - 540 kg
Swivel castors with an adjustable foot and bolt hole with internal thread.
Fork / housing made of cast iron, powder coated.
Rubber locking foot.
Polyamide wheels with plain bearing.
Read more
Specifications
- Article number: 920.425
- Wheel diameter: 72 mm
- Wheel width: 34 mm
- Type of wheel: Swivel castor with adjustable base
- Temperature: - 40 / + 90 °C
- Gaff rash: 90 mm
- Wheel bearing: Slide bearing
- Tyre hardness: approx. 75 shore D
- Suitable for: Flat surface
- Bandage: Polyamide (PA6)
- Carrying capacity: 540 kg
- Assembly: Plate mount
- Fork: Cast iron, powder coated
- Castor height: 120 mm
- Unit height max.: 138 mm
- Low rolling resistance:
- Threaded pin size: 16 x 16 mm
