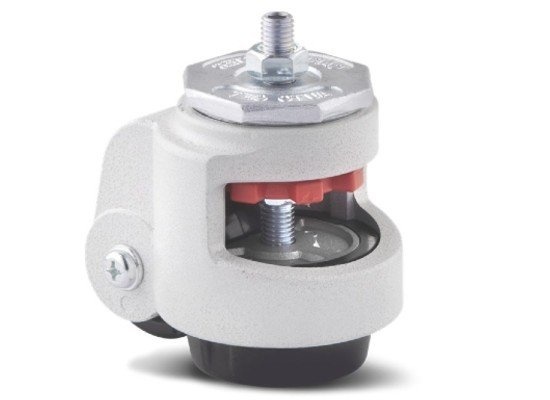

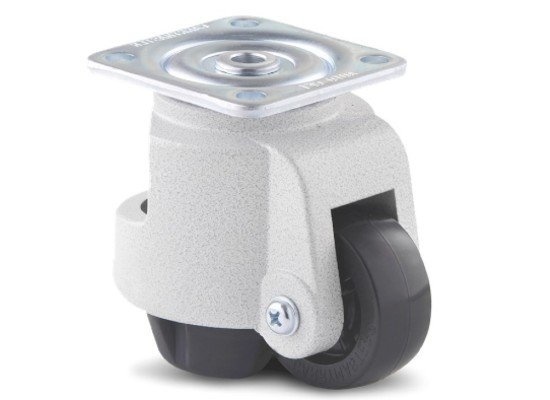

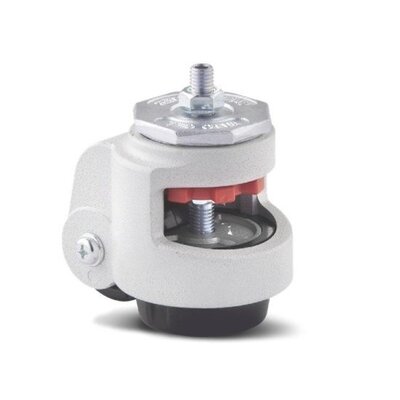

Swivel castor with adjustable foot 90 mm - Nylon - plate - 1500 kg
Show all:
Industrial wheels,Casters
Description
Swivel castor with 90 mm adjustable foot and plate - 1500 kg
Swivel castors with adjustable foot and plate attachment.
Fork / housing made of powder-coated steel.
Plastic fixing foot.
Cast nylon wheels with a slide bearing.
Read more
Specifications
- Article number: 920.050
- Wheel diameter: 90 mm
- Wheel width: 56 mm
- Castor height: 130 mm
- Unit height max.: 155 mm
- Plate size: 97 x 97 mm
- Bolt hole spacing: 70 x 70 - Ø 13 mm
- Gaff rash: 115 mm
- Carrying capacity: 1000 kg
- Type of wheel: Swivel castor with adjustable base
- Assembly: Plate mount
- Fork: Steel, powder coated
- Wheel bearing: Slide bearing
- Bandage: Cast nylon
- Tyre hardness: approx. 75 shore D
- Low rolling resistance:
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
Show all
Specifications
- Article number: 920.050
- Wheel diameter: 90 mm
- Wheel width: 56 mm
- Castor height: 130 mm
- Unit height max.: 155 mm
- Plate size: 97 x 97 mm
- Bolt hole spacing: 70 x 70 - Ø 13 mm
- Gaff rash: 115 mm
- Carrying capacity: 1000 kg
- Type of wheel: Swivel castor with adjustable base
- Assembly: Plate mount
- Fork: Steel, powder coated
- Wheel bearing: Slide bearing
- Bandage: Cast nylon
- Tyre hardness: approx. 75 shore D
- Low rolling resistance:
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
Show all
