Swivel castor with brake 200 mm - pneumatic tyre - 75 kg
Show all:
Casters,Industrial wheels
Description

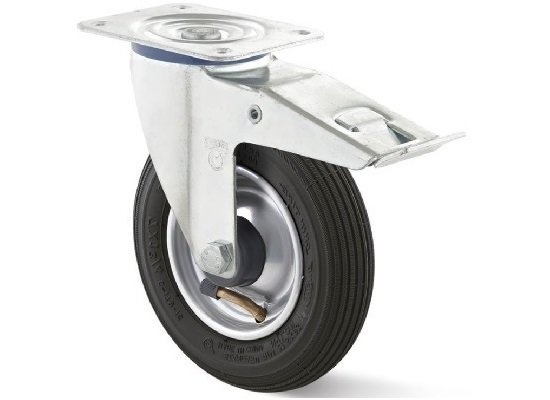

Swivel castor with brake 200x50 pneumatic tyre with roller bearing and plate - 75 kg
Swivel castors with brake and plate attachment.
Sheet steel pressed fork (galvanised ) with a double ball swivel.
The brake simultaneously blocks the swivel and the wheel.
Wheels with black pneumatic tyres (4 Ply line profile), pressed onto a galvanised steel rim with roller bearings.
Read more
Specifications
- Article number: 472.121
- Soundproof: 5
- Tyre air pressure: 2.5 bar
- Tyre profile: Line profile
- Ply rating: 4
- Fork: Steel, galvanized
- Assembly: Plate mount
- Building height: 240 mm
- Carrying capacity: 75 kg
- Bandage: Air Tire
- Rim: Steel, galvanized
- Suitable for: Flat surface and outside area
- Wheel diameter: 200 mm
- Wear-resistant: 2.5
- Rolling resistance: 3
- Wheel bearing: Roller bearing / Needle bearing
- Brake: Locks wheel and swivel simultaneously
- Gaff rash: 54 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Plate size: 135 x 110 mm
- Temperature: - 20 / + 60 °C
- Type of wheel: Swivel castor with brake
- Wheel width: 50 mm
